MONOX 3.0 – professional modular road grader 1.5–3.0 m

MONOX 3.0 – professional modular road grader 1.5–3.0 m

Sales | Rental | Modular system

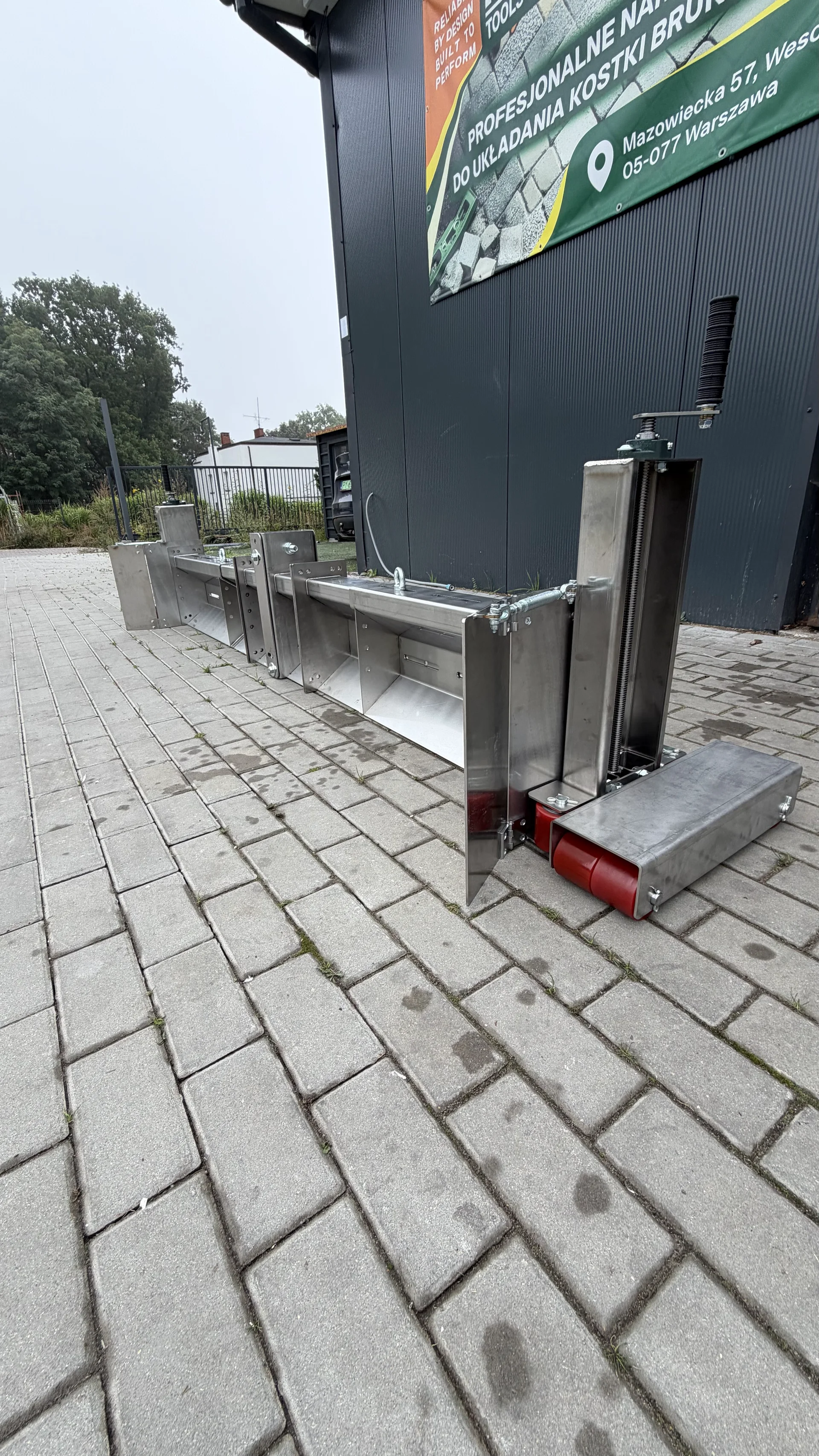

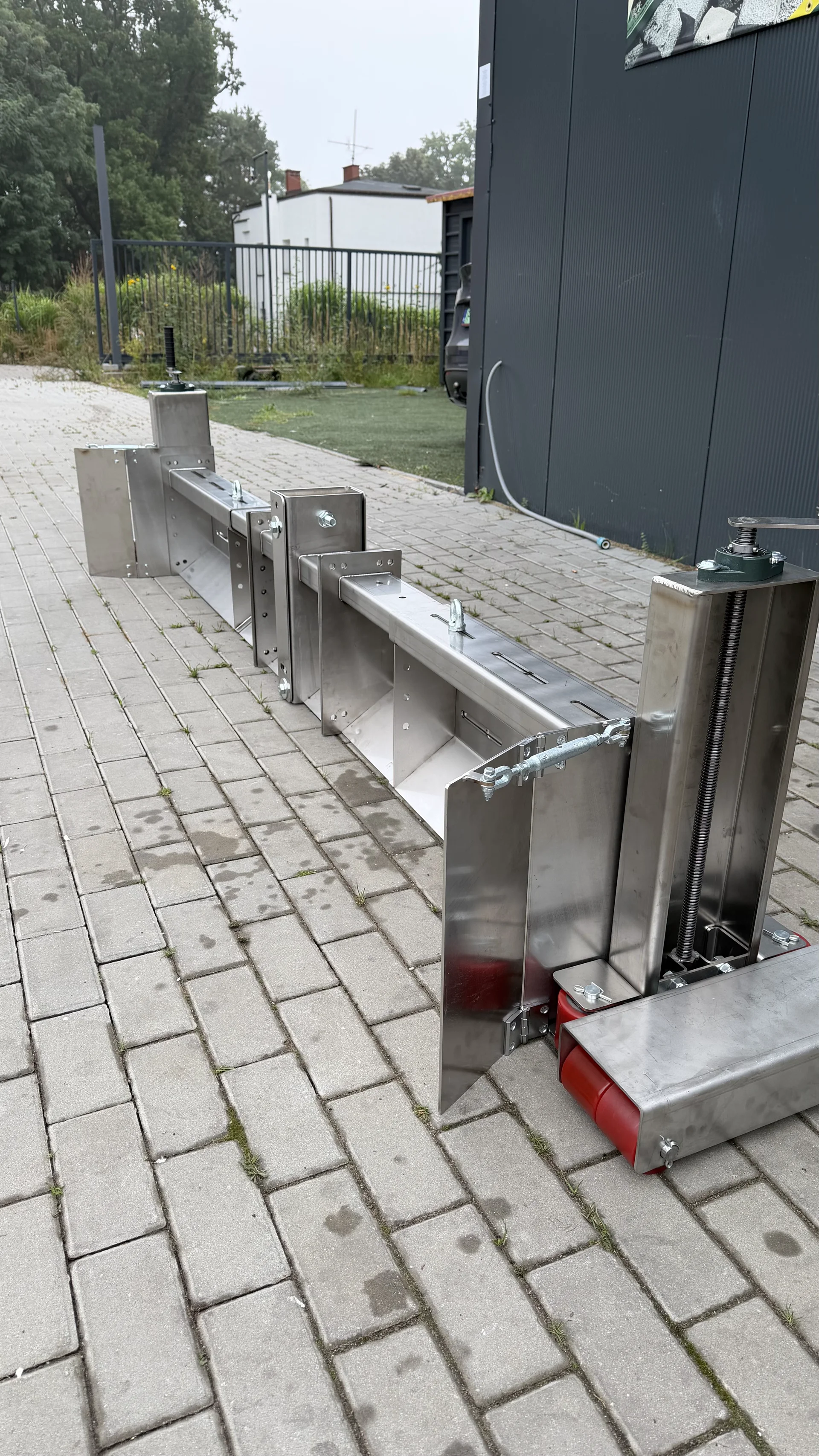

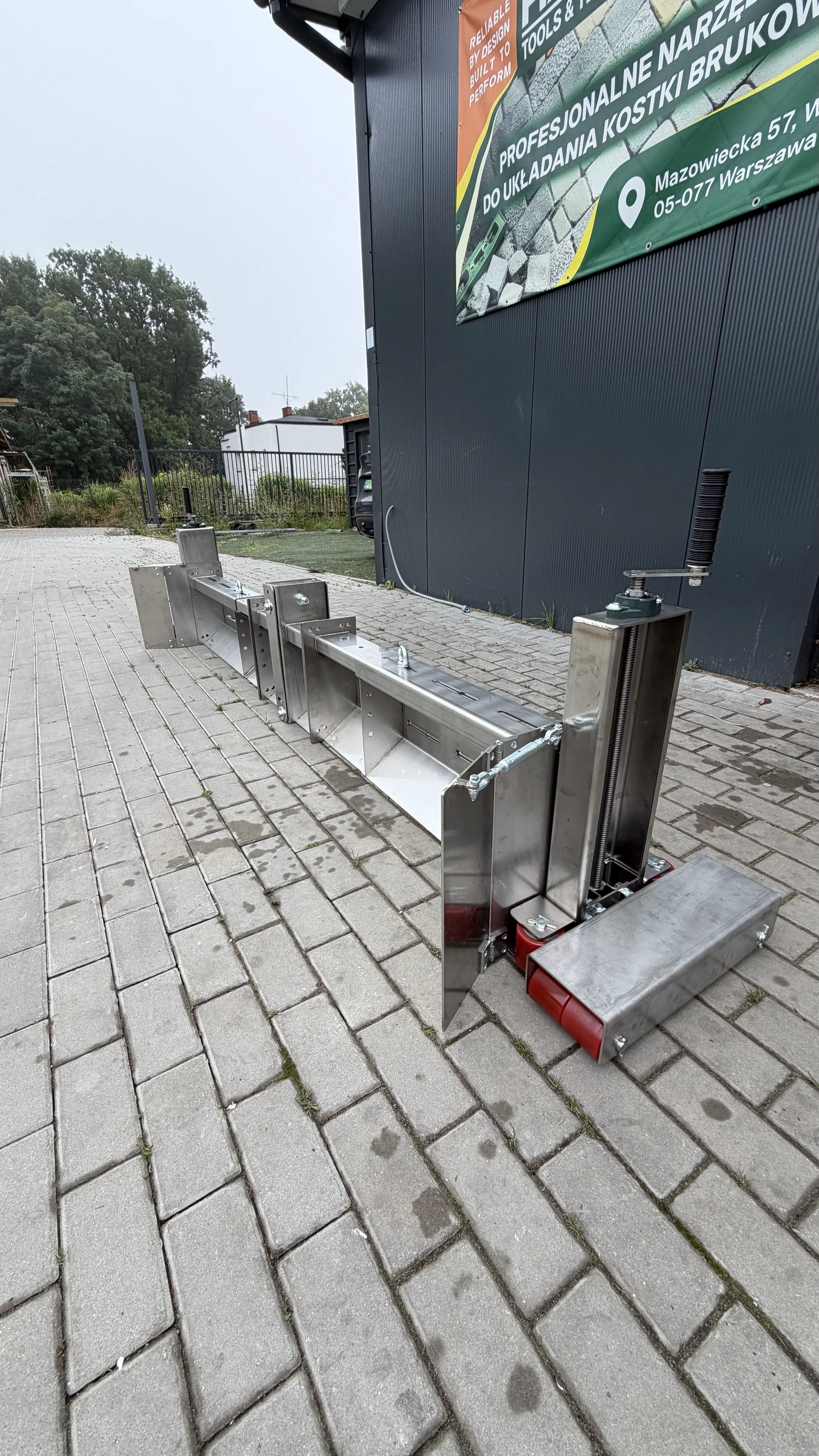

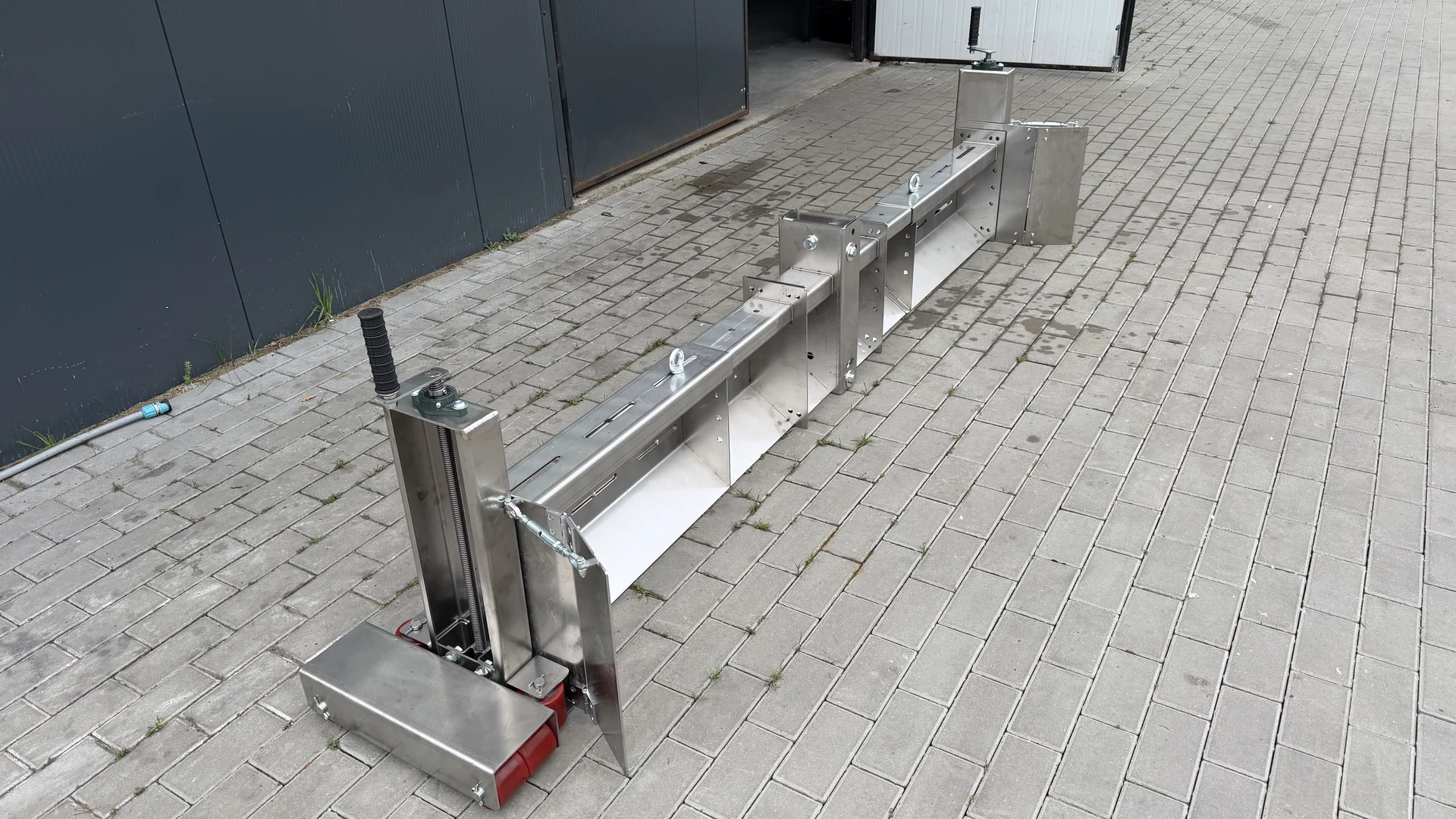

MONOX 3.0 is a professional grader for profiling and leveling sub-bases on driveways, roads, squares, and other surfaces. The modular design allows you to adjust the working width to the section being worked on in the range of 1.5–3.0 m.

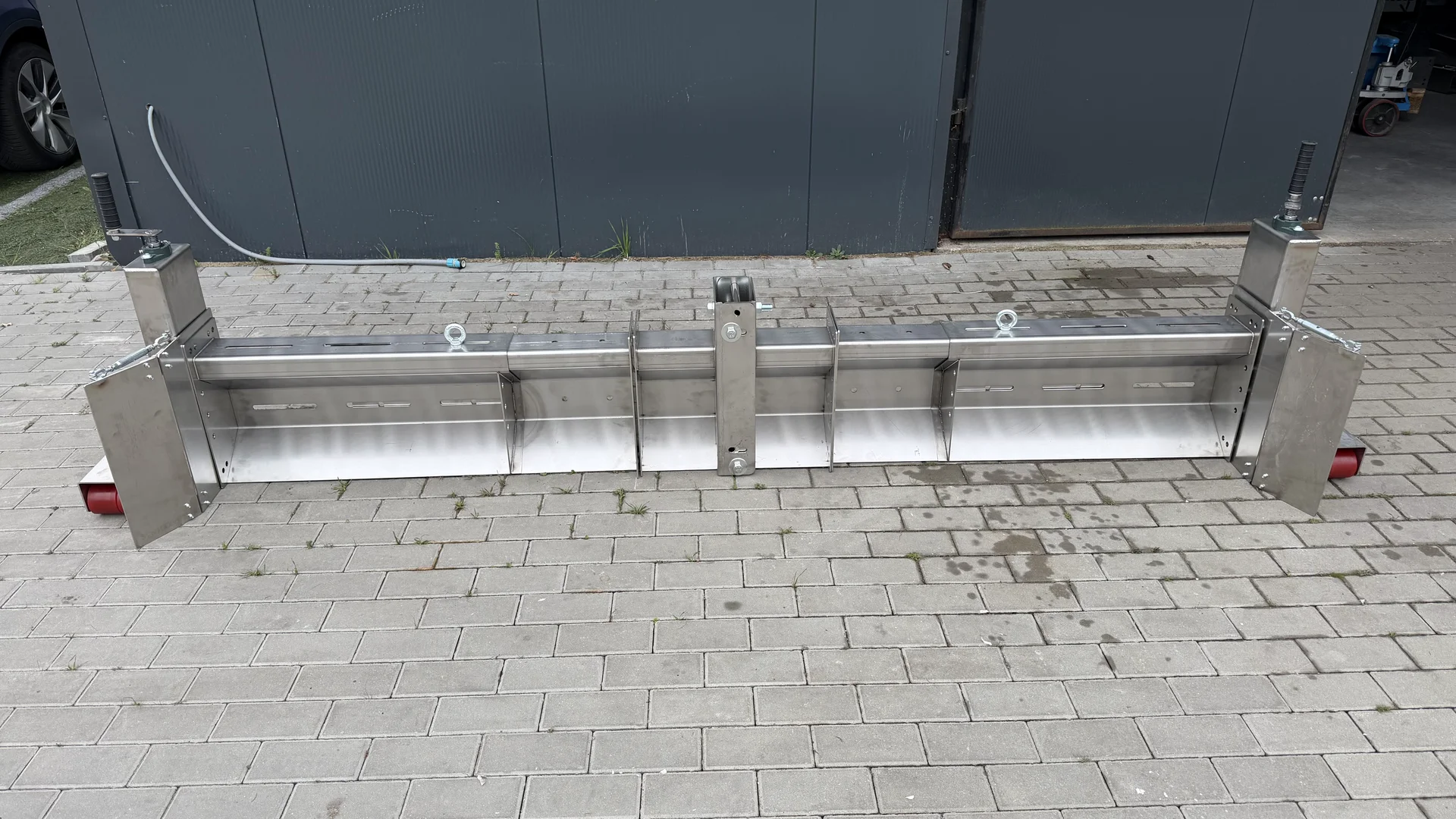

Two adjustable modules have a working range of 75–125 cm each. They can be connected directly or a 50 cm central module can be used between them:

• Without central module: working width 1.5–2.5 m.
• With central module: working width 2.0–3.0 m.

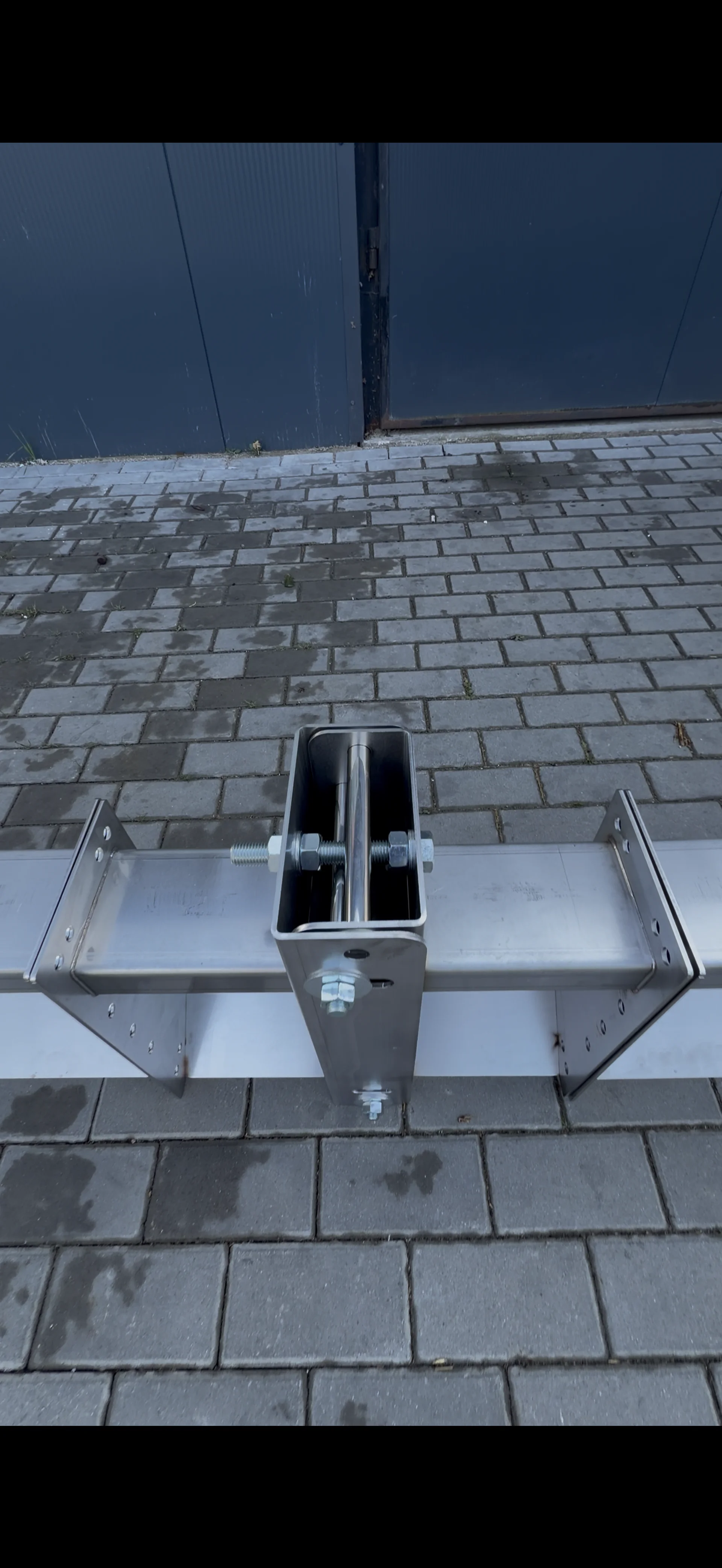

The central module allows for slope adjustment up to 5% — from the center or towards the center of the surface. It allows you to prepare a profile adapted to the planned drainage.

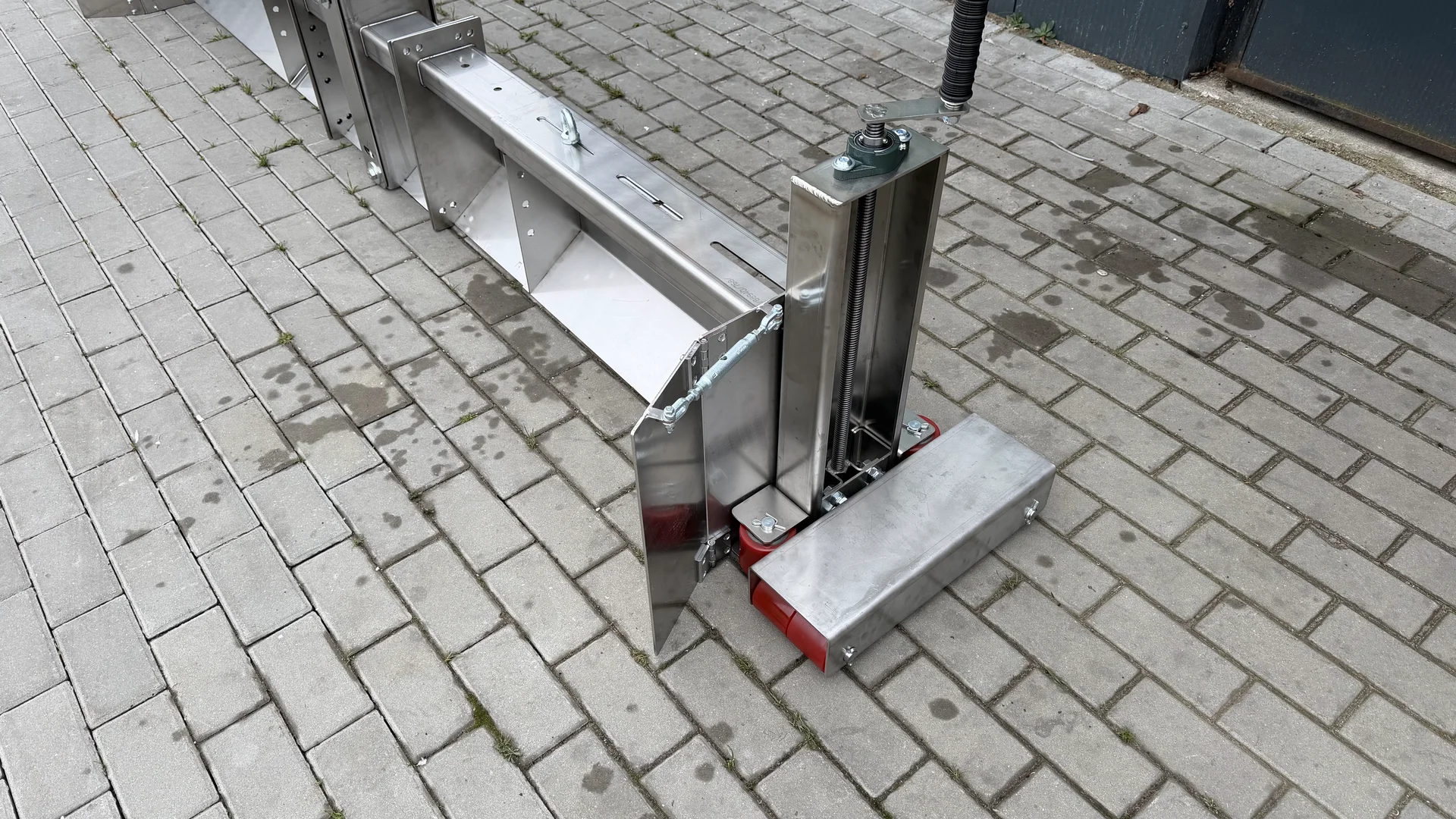

The structure is made of 4 mm thick stainless steel and is laser-welded. Stiffening ribs increase the tool's rigidity and help maintain stability during profiling. 2 side guide rollers make it easier to guide the grader during operation.

Expandability

MONOX 3.0 can be expanded in the future with additional modules available for separate purchase. The basic set provides a working width of 1.5–3.0 m, and adding more modules allows you to increase it and adapt the grader to larger surfaces.

You don't have to buy a new grader — just buy the appropriate modules and expand your existing system.

Additional expansion modules are not included in the basic set.

Key advantages

• Working width 1.5–3.0 m, depending on configuration.
• Two adjustable modules with a range of 75–125 cm each.
• Possibility to work with or without the central module.
• Central module with slope adjustment up to 5%.
• Slope setting from the center or towards the center of the surface.
• 2 side guide rollers included.
• Structure made of 4 mm thick stainless steel.
• Connections made using laser welding.
• Stiffening ribs increasing structural stability.

Set contents

• 1 central module with a length of 50 cm with slope adjustment.
• 2 adjustable modules with a working range of 75–125 cm each.
• Set of side guide rollers — 2 pieces.

Technical data

Model: MONOX 3.0
Type: modular road grader
Working width range: 1500–3000 mm
Width without central module: 1500–2500 mm
Width with central module: 2000–3000 mm
Central module length: 500 mm
Number of adjustable modules: 2 pcs.
Working range of each adjustable module: 750–1250 mm
Number of side guide rollers: 2 pcs.
Slope adjustment in the central module: up to 5%
Structure height: 350 mm
Material: stainless steel
Sheet thickness: 4 mm
Joining technology: laser welding

Application

• Profiling sub-bases for road surfaces.
• Preparing the ground for paving stones and slabs.
• Leveling driveways, squares, and communication routes.
• Forming slopes for drainage systems, also conducted through the center of the surface.

MONOX 3.0 — adjust the width, set the required slope, and prepare an even sub-base with one modular system.
